CPU | AMD V1807B (4 x 3.35 - 3.75 GHz, L2cache 2MB shared, 35-54W)
AMD V1756B (4 x 3.25 - 3.6 GHz, L2cache 2MB shared, 35-54W)
AMD V1605B (4 x 2.0 - 3.6 GHz, L2cache 2MB shared, 12-25W)
AMD V1202B (2 x 2.5 - 3.4 GHz, L2 cache 1MB shared,12-25W)
|
DRAM | 2Sockets, SO-DIMM DDR4 up to 32 GByte with ECC |
Chipset | Integratedin SoC |
Ethernet | GigabitEthernet |
I/O Interfaces | 4 xPCI Express™ 3.0 lanes
4 x PCI Express™ 2.0 lanes
1 x PEG 3.0 x8
3 x USB 3.1 Gen2
1 x USB 3.1 Gen1
8 x USB 2.0
2 x SATA 6 Gb/s
I2C bus (fast mode, 400 kHz, multi-master)
SD
LPC bus
SPI
SM-Bus
2 x UART |
Sound | HighDefinition Audio Interface |
Graphics | IntegratedAMD Radeon Graphics supports DirectX 12, OpenGL 4.6
and OpenCL™ 2.1,up to 3Simultaneous Displays Unified Video
Decoder 6 (H.265, H.264, MVC, MPEG4, MPEG2,VC-1, WMV
and MJPEG) Video Compression Engine 3.1 (dual, H.264, SVC) |
congatec Board Controller | MultiStage Watchdog,non-volatile User Data Storage,Manufacturing
and BoardInformation,Board Statistics,LVDS backlight control I2C
bus (fast mode, 400kHz, multi-master),Power Loss Control |
embedded BIOS Features | AMIAptio® 2.X (UEFI) BIOS
8 MByte serial SPI firmware flash |

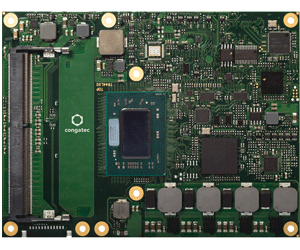

Security | Theconga-TR4 offers a discrete TPM 2.0 (Infineon SLB9665).
This TPM includes coprocessors to calculate efficient hash and RSA
algorithmswith key lengths up to 2048 bits as well as a real random
number generator.Security sensitive applications like gaming and
e-ommerce will benefit alsowith improved authentication, integrity
and confidence levels. The conga-TR4also offers AMD Secure
Processor.
|
Power Management | ACPI5 .0 compliant, Smart Battery Management |
Operating Systems | Microsoft®Windows® 10
Microsoft® Windows 10 IoT Enterprise (64bit only)
Microsoft® Windows 10 Core Pro
Linux
Yocto |
Temperature | Commercial: Operating: 0 to +60°C | Operating industrial: -40 .. +85°C | Storage: -20 to+80°C |
Humidity | Operating:10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
Size | 95x 125 mm (3.74" x 4.92") |
