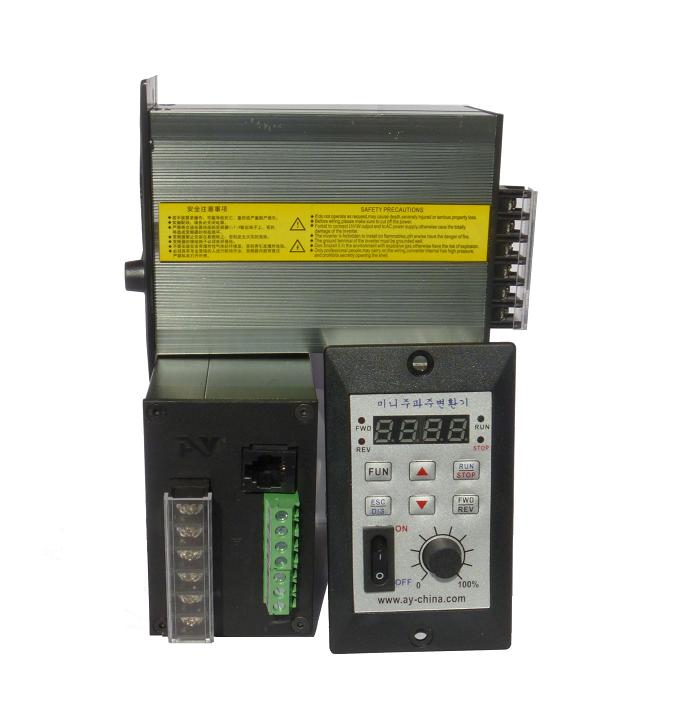

AS01-4W三相交流電機驅動器

(AS01-4W Three-phase ac motor drive manual)

User manual

此驅動器適用于單相220V交流電輸入，驅動25~400W三相電機調速。(This drive apply to single-phase AC 220V input , and drive 25~400W three-phase motor to adjust speed.)

(The manual provides the user for installation, debugging and maintenance)

(Before use, please read, and keep.)



使用環境（Use of the environment）：

電源：單相AC220V±40%

（Power supply: single phase AC220V±40%）

溫度：-10℃~50℃

(Temperature: -10℃~50℃)

濕度：0%~65%

(Humidity: 0% ~ 65%)

注意事項

接線時，務必關閉電源。(When wiring, be sure to turn off the power.)

接線時務必確認，絕不可將AC電源接至電機輸出端。

(When wiring, be sure to confirm, will not be AC power connected to the output end of the motor .)

使用現場無凝露，粉塵，無腐蝕性液體，氣體。

(The use of the site without dewing, dust, no corrosive liquid, gas.)

安裝部位堅固，無振動。

(The installation part is firm, no vibration.)

因整體較小，請?zhí)幚砗媒泳�線頭。

(Due to the overall smaller, please handle connection  wiring thread.)

使用環境溫度過高時，請留出足夠的散熱空間。

（If the ambient temperature is too high, please leave enough space for heat dissipation.）

面板電位器控制

 Panel potentiometer control
