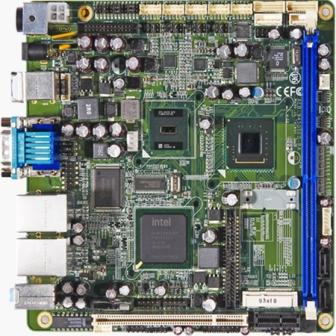

Product Specification
-
System Processor/Chipsets
- Processor: Intel® Atom™ N270 single-core processor on board
- FSB: 533MHz
- Chipset: Intel® 945GSE + ICH7M
- BIOS: Award 16MB SPI
- Technology: DDR2 400/533/667 SDRAM
- Max. Capacity: Up to 2GB
- Socket: 1 x 240-pin DDR2 DIMM
- Chipset: Intel® 945GSE integrated GMA950
- Video Memory: DVMT 3.0 supports up to 224MB video memory
- Resolution: Analog Display: Up to 2048 x 1536 (QXGA)
- LVDS: 24bit, dual channel (945GSE integrated)
- LVDS Resolution: Digital LVDS: Up to 1600 x 1200 (UXGA)
- TV-Out: Both S-Video/Composite Video via cable
- Dual Display: CRT+LVDS, LVDS+TV, TV+CRT
- Interface: Dual 10/100/1000 Mbps
- Controller: Realtek 8111C
- Interface: High Definition Audio
- Controller: Realtek ALC662 HD CODEC
- Max. Data Transfer Rate: 300 MB/s
- Port: 2
- Channel: 1
- Mode: IDE (Ultra ATA 100/66/33), 1x44pin connector for 2.5" slim type with power
- Compact Flash: 1, Compact Flash Type I/II
- PCI-E: 1
- PCI: 1 (support riser card up to 3 PCI slots)
- Mini PCI-E: 1
- LVDS: 2
- USB 2.0: 4
- COM: 5 [4 (RS-232, supply 5V & 12V); 1 (RS-232/422/485, supply 5V & 12V)]
- Parallel: 1
- Audio Amplifier: 1(6W (4Ω) stereo, default 2W)
- DIO: 8-bit Digital I/O (4bit In + 4bit Out)
- Compact Flash: 1 (Bottom Side)
- PS/2: 1
- IrDA: 1
- VGA: 1
- COM: 1
- LAN: 2 x RJ45
- USB 2.0: 4
- PS/2: 2 (1xK/B and 1xMouse)
- Audio: 3 (Mic.-in, Line-in, Line-out)
- DC In: 1 (4 Pin, DC12V In)
- DC Out: 1(DC12V Power Jack)
- Jack Type: 4 PIN DC12V-in power connector and 2 PIN DC12V-in power Jack
- Interval: Programmable 1~255 sec.
- Output: Sytstem reset
- Operating Temp.: -5°C~60°C (23°F~140°F)
- Storage Temp.: -20°C~80°C (-68°F~176°F)
- Relative Humidity: 0%~95% (non-condensing)
- Dimension (LxW): Mini-ITX, 170mm x 170mm (6.69" x 6.69") |
